Welded Plate Heat Exchanger HT-BLOC: Ideal Choice for High Efficiency and Stability

Short Description:


Certificates: ASME,  NB, CE, BV, SGS etc.

Design pressure: Vacuum ~ 32 Bars

Plate thickness: 0.8 ~ 1.2mm

Design Temp.: -20℃~350℃

Plate Spacing: 8~10mm

Max. surface area: 600m2

Product Detail

Product Tags

We understand that you are looking for a heat exchanger that can meet high efficiency requirements and ensure long-term stable operation. Our Welded Plate Heat Exchanger HT-BLOC, with its excellent performance and unique design, is your ideal choice.

This heat exchanger is produced by Shanghai Heat Transfer Equipment Co., Ltd., combining the high heat transfer efficiency of plate heat exchangers and the high pressure and temperature resistance of shell and tube heat exchangers. It adopts a unique structural design, with the heat exchange core made of welded plates inside and a bolt-connected shell frame outside. This design not only gives the equipment high heat transfer efficiency, but also a small footprint, easy installation and layout. The four blind plates can be disassembled for easy cleaning, greatly shortening the maintenance and repair time of the equipment and improving work efficiency.

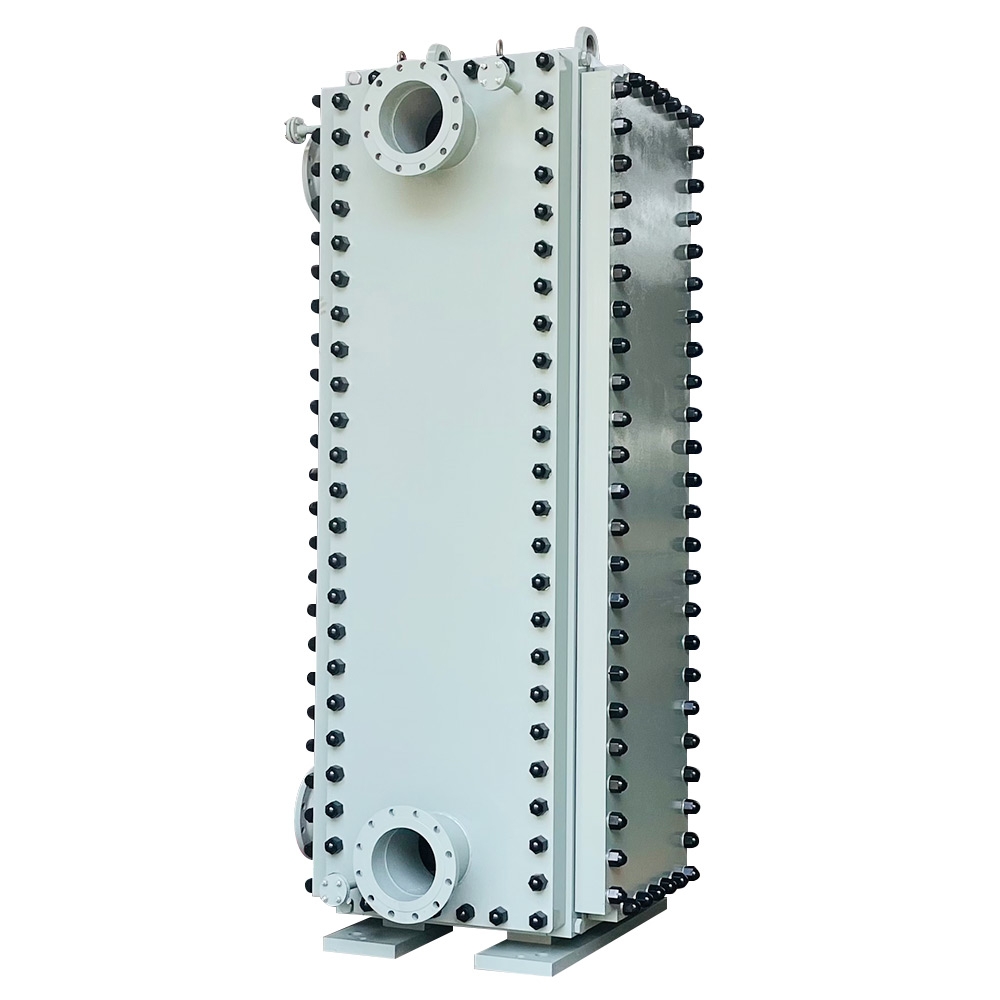

Welded Plate Heat Exchanger-1

During operation, our Welded Plate Heat Exchanger HT-BLOC has strict operating specifications to ensure the long-term stable operation of the equipment. For example, the operating flow rate should not be less than 10% of the design flow rate to prevent premature scaling and blockage. At the same time, to ensure the life of the heat exchanger, it should be started slowly and steadily, with a heating rate not exceeding 50℃ per hour and a pressure accumulation rate not exceeding 0.1MPa per minute.

Of course, we have also considered possible problems for you. If there are problems such as seal gasket leakage, blind plate coating or pressure plate leakage, we provide detailed solutions to help you quickly solve the problems and ensure the normal operation of the equipment. If the heat transfer performance decreases or the pressure drop increases, we also provide you with cleaning and maintenance suggestions.




Our Welded Plate Heat Exchanger not only has advanced design technology and excellent heat transfer performance, but also comprehensive after-sales service. No matter what problems you encounter, we will provide solutions for you in time.

If you are interested in our products, or have any questions, please feel free to contact us. We look forward to cooperating with you to create efficient and stable engineering projects.

Welded Plate Heat Exchanger
