Pillow plate wide gap waste gas condenser

Short Description:

ASMECEbv

Certificates:               ASME,  NB, CE, BV, SGS etc.

Design pressure:        Vacuum ~ 35 Bars

Plate thickness:          1.0 ~ 2.5mm

Design Temp.:            ≤350℃

Channel gap:              8 ~ 30mm

Max. surface area:       2000m2




Product Detail

Product Tags

How it works

The plate heat exchanger can be especially used for thermal treatment such as heat-up and cool-down of viscous medium or medium contains coarse particles and fiber suspensions.

Special design of the heat exchange plate ensures better heat transfer efficiency and pressure loss than other kinds of heat exchange equipment in the same condition. Smooth flow of the fluid in the wide gap channel is also ensured. It realizes the aim of no“ dead area” and no deposition or blockage of the coarse particles or suspensions.

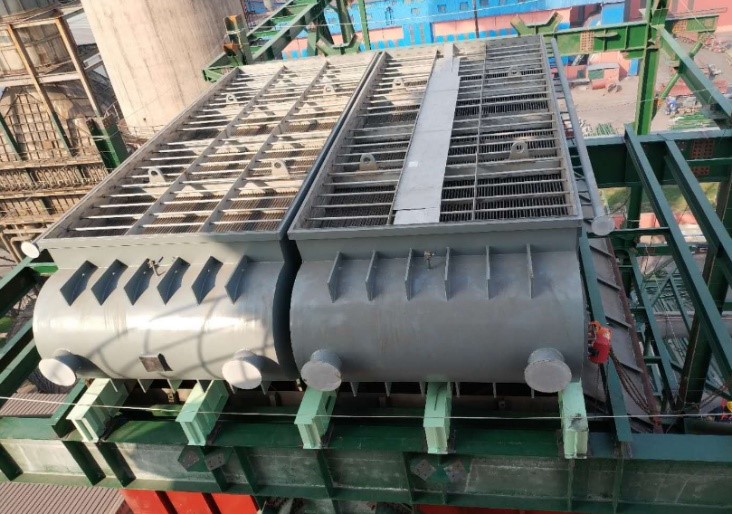

Pillow plate wide gap waste gas condenser2

Features

High service temperature 350°C
High service pressure up to 35 bars

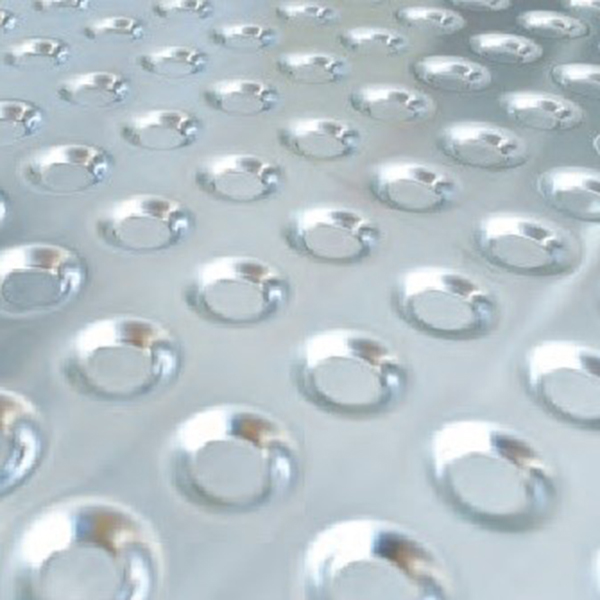

High heat transfer coefficients due to corrugated plate
Free flow channels with wide gap for wastewater
Easy for cleaning
No spare gaskets

Wide Gap Channel Wastewater cooler3
Wide Gap Channel Wastewater cooler4
