Crude oil produced from offshore fields contains a complex mixture of free water, dissolved salts, gums, asphaltenes, and solid particulates. The presence of saline and water‑laden crude accelerates corrosion of pipelines, storage tanks, and process equipment, while sediment buildup leads to fouling, increased system pressure drop, and higher energy consumption—directly impacting platform production stability and equipment service life. An efficient and reliable crude oil pretreatment system is therefore an indispensable core component of any offshore production platform.

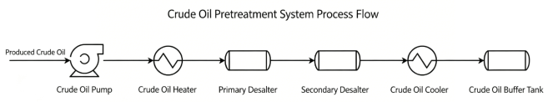

In a typical pretreatment process, crude oil is pressurized by pumps, heated, and then fed into a desalter to remove salts and impurities. The hot desalted crude then enters the crude oil cooler, where it is cooled by exchanging heat with a cooling medium such as fresh water or glycol solution, before being sent to a surge tank for storage. As the final heat exchange unit in this process, the crude oil cooler operates under severe conditions—high temperatures, corrosive media, and a high fouling tendency. Its operational reliability and ease of maintenance directly determine the overall system uptime and total lifecycle costs.

Conventional solutions have their own limitations. Gasketed plate heat exchangers offer high thermal efficiency and flexible maintenance, but the rubber gaskets tend to age and fail rapidly under continuous exposure to hot crude oil, requiring frequent replacement. Moreover, plate cleaning is difficult and maintenance costs are high. Shell‑and‑tube heat exchangers, on the other hand, can withstand high temperatures and pressures, but they suffer from low heat transfer efficiency, large footprint, and equally troublesome cleaning and maintenance.

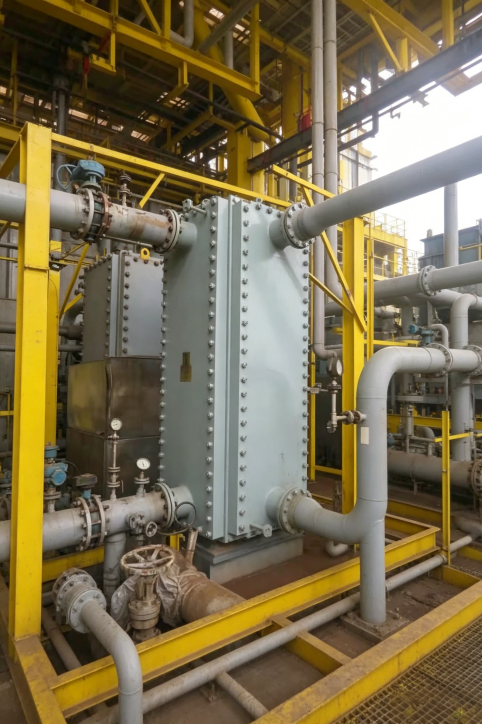

To address these challenges, Shanghai Heat Transfer Equipment Co.,Ltd. has developed the HT‑BLOC welded plate heat exchanger—a systemically innovative design that redefines both the plate pack structure and flow channel geometry. It offers a more reliable, cost‑effective, and hassle‑free solution for offshore crude oil cooling applications:

1. All‑welded sealing + four‑side removable covers – zero leakage, easy servicing
The plate pack core is fully welded, with no elastomeric seals whatsoever, eliminating the risk of hot crude oil leakage at the source. In addition, the unit features removable blind covers on all four sides. Once removed, operators can directly access the flow channels and use high‑pressure water jets for thorough cleaning—quick, straightforward, and significantly reducing maintenance downtime.

2. Wide‑gap chevron corrugation – enhanced heat transfer and anti‑fouling performance
While retaining the high turbulence and superior heat transfer efficiency of traditional chevron‑type corrugations, the HT‑BLOC incorporates wider channel gaps. The flow configuration can also be flexibly arranged to maintain high inter‑plate velocities, which increases wall shear stress and effectively retards deposit formation. This significantly extends the continuous operating cycle and reduces the frequency of chemical cleaning.

3. Compact vertical configuration – saving valuable platform space and reducing capital costs
The heat transfer core is stacked vertically, occupying far less horizontal floor space than shell‑and‑tube exchangers of equivalent capacity. This compact design is particularly well‑suited for the space‑constrained layouts of offshore platforms, effectively lowering infrastructure costs for both new builds and retrofit projects.

In summary, the HT‑BLOC welded plate heat exchanger precisely overcomes the long‑standing issues of conventional crude oil coolers—poor sealing reliability, fouling tendency, difficult maintenance, and large footprint. It combines multiple advantages into one integrated solution: high sealing integrity, strong anti‑fouling capability, low maintenance costs, high space utilization, and energy‑efficient operation. Choosing the HT‑BLOC means longer system run lengths, fewer unplanned shutdowns, and lower annual operating expenses—providing truly trustworthy core equipment support for offshore crude oil pretreatment systems.
